A raised access floor system is literally an elevated or ‘raised’ floor area upon another floor (typically a concrete slab in a building).

ViewExplanationMovie

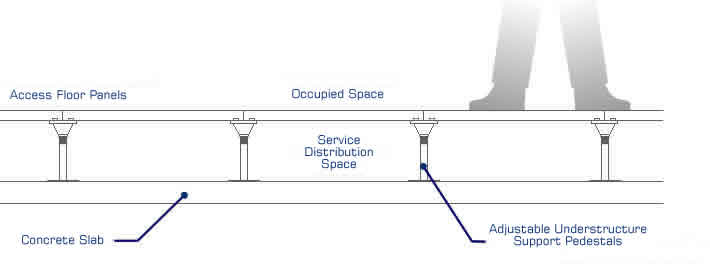

What is a Raised Floor diagram

A raised access floor comprises of load bearing floor panels laid in a horizontal grid supported by adjustable vertical pedestals to provide an underfloor space for the housing and distribution of services. The floor panels are readily removable to allow quick access to the underfloor services.

How do I maximise the use of a Raised Access Floor?

The access floor system (floor panels and support pedestals) creates a space between the floor slab and the underside of the access floor. This space is where you can cost-effectively run any of your building services. These services consist of electric power, data, telecom/voice, environmental control and air conditioning, fire detection and suppression, security, etc.

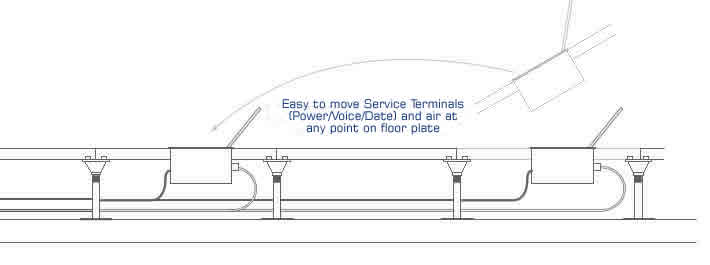

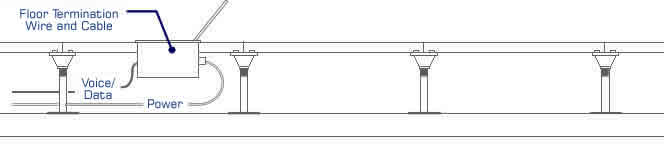

The access floor panels are designed to be removable from their support so that ‘access’ to underfloor services is fast and easy. Access holes are made in the floor to allow services to terminate at floor level using hinged lid termination boxes, or ‘pass-thru’ the floor panels into the working space of the building area.


How do I maximise the use of a Raised Access Floor diagram

How do I maximise the use of a Raised Access Floor diagram 2
